Multiple-method OpDEA Benchmarking

Source: R/Benchmarking_Multiple.R
benchmarking_multiple.Rd

Orchestrator that imports, ranks, visualizes, and exports results from multiple normalization/imputation method combinations.

Usage

benchmarking_multiple(
  opdea_combined = NULL,
  confusion_combined = NULL,
  classified_combined = NULL,
  bench_metrics_combined = NULL,
  results_dir = NULL,
  pattern = "benchmark_opdea_metrics\\.tsv$",
  method_names = NULL,
  recursive = TRUE,
  strip_prefix = "benchmark_",
  metrics = .BM_METRICS,
  extended_metrics = .BM_EXTENDED_METRICS,
  p_col = "adj.P.Val",
  plots = "all",
  verbose = TRUE,
  output_dir = NULL,
  export_plots = TRUE,
  export_tables = TRUE,
  plot_width = 12,
  plot_height = 8,
  plot_dpi = 150
)

Arguments

opdea_combined

Optional pre-built data.frame with columns: Assay, Comparison, nMCC, G_mean, pAUC_001, pAUC_005, pAUC_010. If NULL, results are imported from results_dir.

confusion_combined

Optional pre-built data.frame with columns: Assay, Comparison, TP, FP, TN, FN. If NULL and results_dir is provided, imported from benchmark_confusion_overall.tsv files.

classified_combined

Optional pre-built data.frame with columns: Assay, Comparison, truth, and a p-value column. If NULL and results_dir is provided, imported from benchmark_classified.tsv files. Used for multi-method ROC curves.

bench_metrics_combined

Optional pre-built data.frame from import_benchmark_metrics() with columns: Assay, Comparison, Sensitivity, Specificity, Precision, NPV, F1, Accuracy, MCC, Performance. If NULL and results_dir is provided, imported from benchmark_metrics.tsv files. Used for extended 11-metric ranking.

results_dir

Parent directory containing benchmark subfolders (each with benchmark_opdea_metrics.tsv). Used only if opdea_combined is NULL.

pattern

Regex for opdea metrics filename (default: "benchmark_opdea_metrics\.tsv$")

method_names

Optional Assay names for file import

recursive

Search subdirectories? (default: TRUE)

strip_prefix

Prefix removed from each Assay name (default "benchmark_"), so folder-derived names in results_dir mode match the in-memory ones (e.g. "benchmark_Rlr_none_BERT" -> "Rlr_none_BERT"). Set to NULL or "" to keep the full folder name. Harmless when the prefix is absent.

metrics

Character vector of metrics for OpDEA ranking (default: all 5 OpDEA metrics)

extended_metrics

Character vector of metrics for extended ranking (default: all 11 classification + OpDEA metrics)

p_col

P-value column name for ROC curves (default: "adj.P.Val")

plots

Which plots to generate: "all" or character vector of names. Valid names: "ranking_heatmap_mean", "ranking_heatmap_median", "ranking_bars_mean", "ranking_bars_median", "metrics_heatmap_mean", "metrics_heatmap_median", "metrics_comparison", "extended_ranking_bars", "extended_ranking_heatmap"

verbose

Print progress messages (default: TRUE)

output_dir

Directory for exporting results (NULL = no export)

export_plots

Export plots as PNG (default: TRUE)

export_tables

Export tables as TSV (default: TRUE)

plot_width

Plot width in inches (default: 12)

plot_height

Plot height in inches (default: 8)

plot_dpi

Plot resolution (default: 150)

Value

Named list with:

opdea_combined

Combined input data.frame

mean_aggregated

Mean of metrics per Assay

median_aggregated

Median of metrics per Assay

mean_ranking

Ranking table (mean-based)

median_ranking

Ranking table (median-based)

gg_ranking_heatmap_mean

Heatmap of ranks (mean)

gg_ranking_heatmap_median

Heatmap of ranks (median)

gg_ranking_bars_mean

Bar chart of final rank (mean)

gg_ranking_bars_median

Bar chart of final rank (median)

gg_metrics_heatmap_mean

Heatmap of metric values (mean)

gg_metrics_heatmap_median

Heatmap of metric values (median)

gg_metrics_comparison

Boxplot distributions

ranking_by_comparison

Named list of ranking data.frames per comparison

ranking_by_comparison_combined

data.frame with all per-comparison rankings

gg_ranking_heatmap_by_comp

Named list of heatmaps per comparison

gg_ranking_bars_by_comp

Named list of bar charts per comparison

confusion_combined

Combined confusion data.frame (if available)

gg_confusion_stacked

Faceted confusion stacked bars (if available)

gg_confusion_stacked_by_comp

Named list of confusion plots per comparison

classified_combined

Combined classified data.frame (if available)

gg_roc_by_comp

Named list of ROC plots per comparison (if available)

gg_roc_zoom_by_comp

Named list of ROC zoom plots per comparison (if available)

extended_combined

Merged classification + OpDEA data (if bench_metrics available)

extended_mean_aggregated

Mean-aggregated extended metrics per Assay

extended_ranking

Extended ranking table (11 metrics, mean-based)

gg_extended_ranking_bars

Bar chart of extended ranking

gg_extended_ranking_heatmap

Heatmap of extended ranking

parameters

List of parameters used

Examples

data(nadia_dia)
sp <- utils::read.delim(system.file("extdata", "nadia_dia_spikein.tsv.gz",
                                    package = "NADIA"))
ev <- data.frame(Comparison = rep(c("B-A", "D-A"), each = 2),
                 Species = c("ECOLI", "YEAST"),
                 expected_logFC = c(1, -0.58, 2, -3.3))
root <- file.path(tempdir(), "nadia_bench")
for (nm in c("cycloess", "quantile")) {
  de <- process_proteomics(nadia_dia, norm_method = nm,
                           verbose = FALSE)$DEPs_results
  de$Species <- sp$PG.OrganismId[match(de$Protein.IDs, sp$PG.ProteinGroups)]
  benchmarking_proteomics(de, ev, output_dir = file.path(root, nm),
                          verbose = FALSE)
}
result <- benchmarking_multiple(results_dir = root, verbose = FALSE)
#> import_opdea_results: loaded 2 method(s), 2 comparison(s), 4 rows.
#> import_confusion_results: loaded 2 method(s), 2 comparison(s), 4 rows.
#> import_classified_results: loaded 2 method(s), 2 comparison(s), 7988 rows.
#> import_benchmark_metrics: loaded 2 method(s), 2 comparison(s), 4 rows.
result$mean_ranking
#>      Assay rank_nMCC rank_G_mean rank_pAUC_001 rank_pAUC_005 rank_pAUC_010
#> 1 cycloess         1           1             1             1             1
#> 2 quantile         2           2             2             2             2
#>   rank_final
#> 1          1
#> 2          2

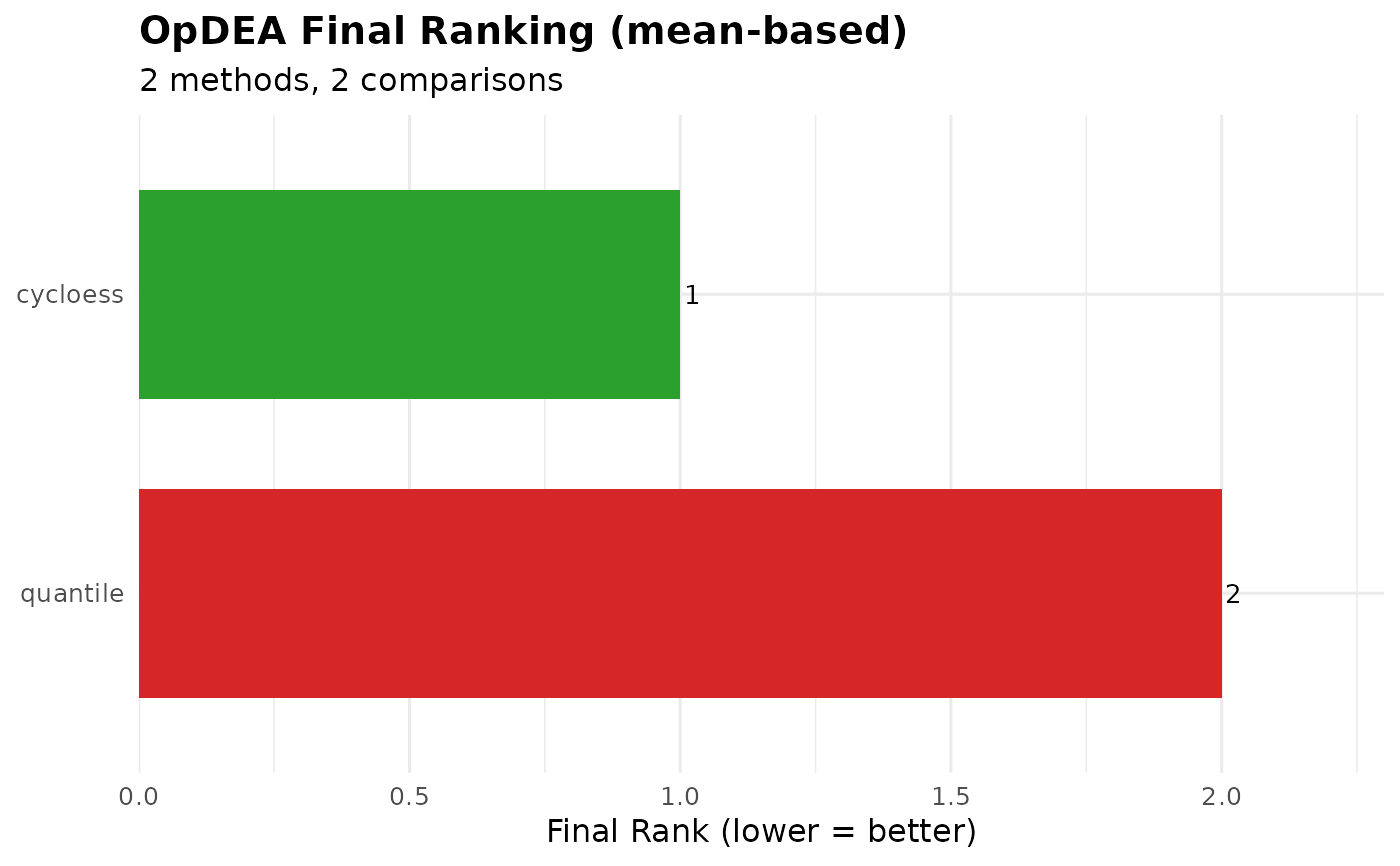

result$gg_ranking_bars_mean
