Generate quality metric plots for normalization comparison

Source: R/Normalization_Metrics.R
normalization_metrics.Rd

Calls all (or selected) nm_plot_*() functions on a SummarizedExperiment produced by import_norm_matrices(). Each plot is wrapped in tryCatch() so that a failure in one plot does not abort the entire run.

Usage

normalization_metrics(
  se,
  assay_names = NULL,
  condition_col = "Condition",
  plots = "all",
  cor_method = "pearson",
  pca_scales = c("free", "fixed", "both"),
  mds_scales = c("free", "fixed", "both"),
  methods = NULL,
  method_args = list(),
  base_assay = "log2",
  seed = 42L,
  verbose = TRUE,
  output_dir = NULL,
  export_plots = TRUE,
  export_tables = TRUE,
  plot_width = 12,
  plot_height = 8,
  plot_dpi = 150
)

Arguments

se

SummarizedExperiment from import_norm_matrices().

assay_names

Character vector of assay names to include. NULL (default) = all assays.

condition_col

Column name in colData(se) with condition labels. Default "Condition".

plots

Character vector of plot names to generate, or "all" (default). Valid names: "boxplot", "density", "pcv", "pmad", "pev", "pca", "correlation", "mds", "scatter", "qq", "metrics", "pc1_ranking", "mds1_ranking", "final_ranking". When pca_scales = "both", "pca" expands to "pca_free" + "pca_fixed". When mds_scales = "both", "mds" expands to "mds_free" + "mds_fixed".

cor_method

Correlation method for nm_plot_correlation(). Default "pearson".

pca_scales

Facet scaling for PCA plot: "free" (default), "fixed", or "both" to generate and export both variants (pca_free and pca_fixed in the returned list).

mds_scales

Facet scaling for MDS plot: "free" (default), "fixed", or "both" to generate and export both variants (mds_free and mds_fixed in the returned list).

methods

Character vector of normalization method names to auto-benchmark, "all" for the 12 benchmark methods ("log2" is the baseline and is excluded, so this is one fewer than the 13 that normalize_proteomics() accepts), or NULL (default) to skip auto-normalization and use existing assays.

method_args

Named list of per-method arguments forwarded to nm_run_normalizations(). E.g. list(cycloess = list(method = "fast", span = 0.8)).

base_assay

Name of the baseline assay to normalize from when using auto-normalization. Default "log2".

seed

Integer. Seed passed to nm_compute_metrics() for the two metrics that use randomness, the Hopkins statistic and the PERMANOVA p-value. Default 42.

verbose

Logical. Print progress messages. Default TRUE.

output_dir

Character. Path to export directory. If NULL (default), no files are exported. When set, tables (TSV) and/or plots (PNG) are saved to this directory (created if needed).

export_plots

Logical. Export plots as PNG when output_dir is set. Default TRUE.

export_tables

Logical. Export tables as TSV when output_dir is set. Default TRUE.

plot_width

Numeric. Width in inches for exported plots. Default 12.

plot_height

Numeric. Height in inches for exported plots. Default 8.

plot_dpi

Numeric. Resolution for exported plots. Default 150.

Value

Named list of ggplot objects (or NULL for failed plots), plus data.frames always computed regardless of plots selection: metrics_table (from nm_compute_metrics()), pc1_rank, mds1_rank, pcv_rank, pmad_rank, pev_rank, cor_rank, and final_rank (combined ranking as the mean of the five ranks Rank_PCV, Rank_PMAD, Rank_PEV, Rank_Cor and Rank_Sep; pc1_rank and mds1_rank are standalone diagnostics and do not enter it).

Details

When methods is provided, the function first runs nm_run_normalizations() to automatically apply the requested normalization methods from the base_assay, then computes metrics and generates plots on the resulting multi-assay SE.

Examples

data(nadia_dia)
se <- nm_prepare_se(nadia_dia, verbose = FALSE)

# Auto-benchmark: normalize from the "log2" baseline, then score the methods
res <- normalization_metrics(se, methods = c("cycloess", "quantile", "MAD"),
                             plots = c("pcv", "final_ranking"), verbose = FALSE)
res$final_rank
#>     Method Rank_PCV Rank_PMAD Rank_PEV Rank_Cor Rank_Sep Rank_Final
#> 1 cycloess        1         1        1        1        3        1.4
#> 2 quantile        3         2        2        4        1        2.4
#> 3      MAD        2         3        3        3        2        2.6
#> 4     log2        4         4        4        2        4        3.6

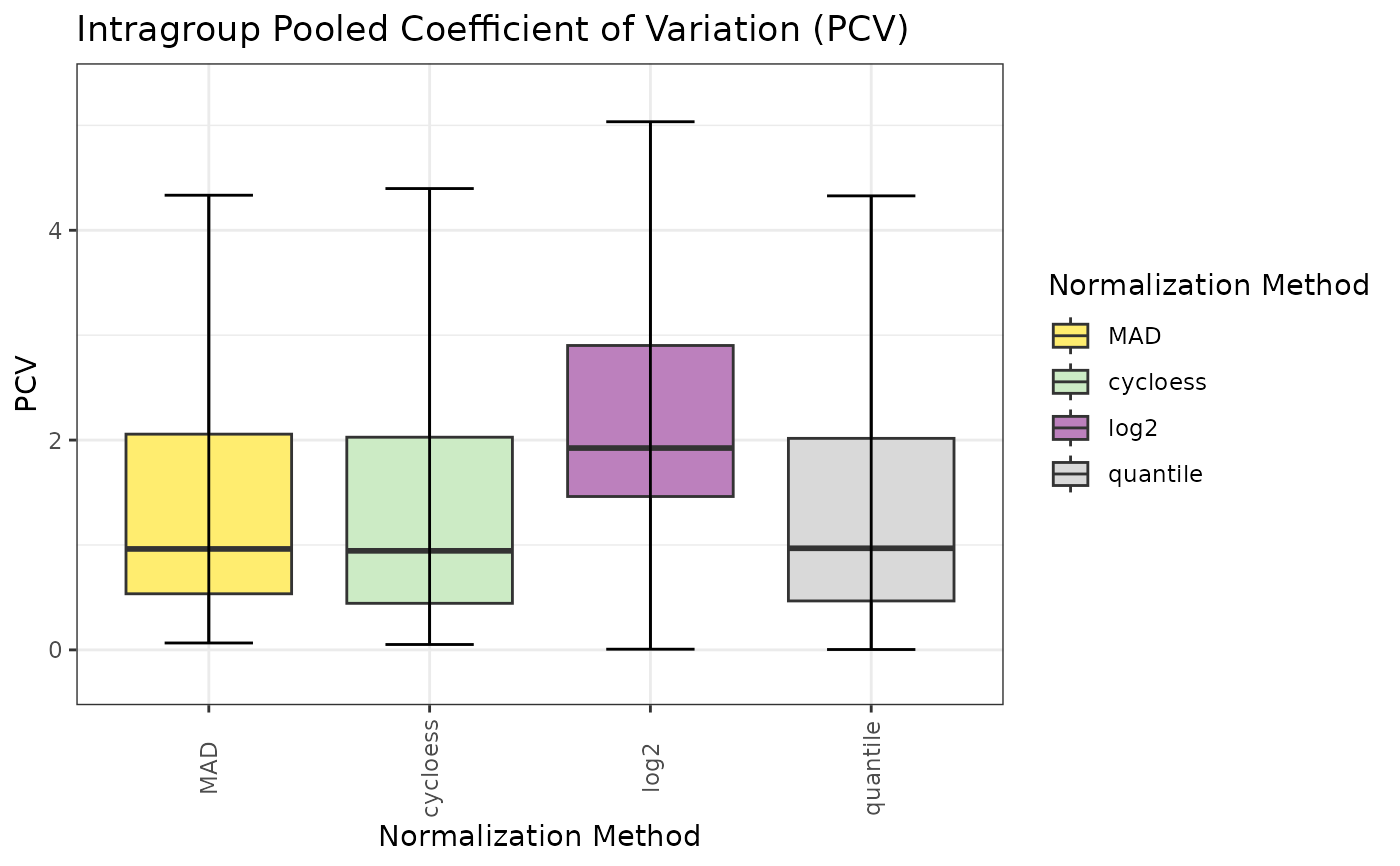

res$pcv
